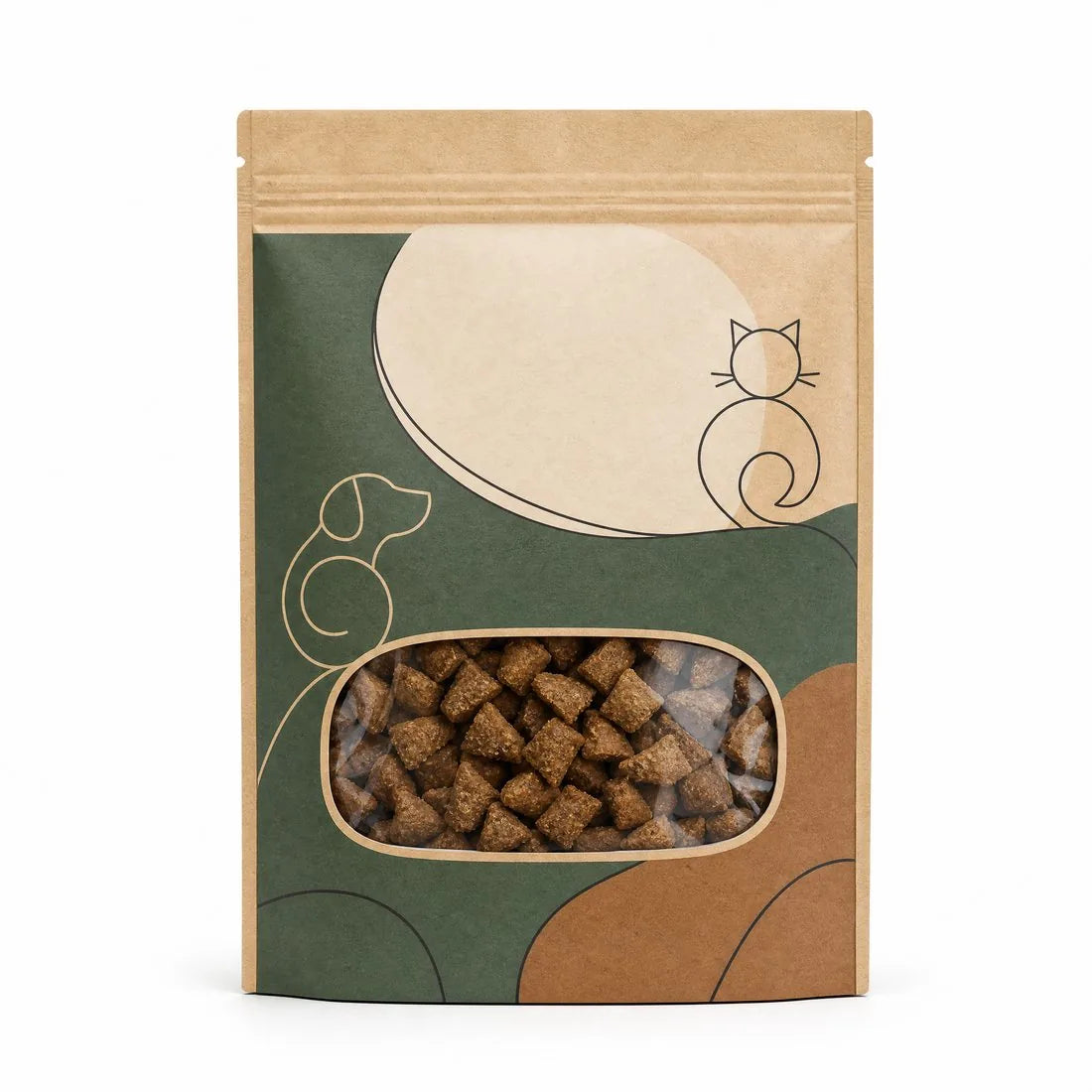

KindPack ClearSight Window Pouch
KindPack ClearSight Window Pouch
Kraft-look pouch with a die-cut clear window so shoppers can see the treat before they buy. Rebuilt into the KP-ECO-002 Paper-First Repulpable Flat-Bottom Pouch green parameter family: paper-first, fibre-recovery (repulpable) direction. Blank front panel, no brand on the pack. All specifications are Draft / Indicative / To Confirm - not a quote.
Specification
| Bag type | Green & Recyclable |
| Structure | Kraft-look composite with a die-cut clear window sealed with high-clarity film over the stand-up pouch body Re-homed to the KP-ECO-002 Paper-First Repulpable Flat-Bottom Pouch build direction: Paper-based outer web over a functional barrier liner, flat bottom panel with quad corner seals so the box-shaped pouch stands square and stacks; a paper-compatible zipper or tin-tie keeps the closure in the fibre path where the fibre-first option is chosen (Draft / To Confirm). |
| Material | DRAFT / TO CONFIRM - KP-ECO-002 family material direction: DRAFT / TO CONFIRM - fibre-first construction direction. Sample candidates: (a) kraft paper 60-80 gsm / water-based barrier coating / thin PE or bio-based sealant liner; (b) paper / dispersion-coated barrier layer with a fibre-recovery-compatible sealant. Fibre share, liner grade and repulpability behaviour are unverified and must be tested before any fibre or recycling wording is used. SKU-specific options carried over from the original catalogue and still to be confirmed: Direction to select at sampling: kraft-look PET composite with a high-barrier clear window film; a paper-forward outer with a plastic-free window can be evaluated where transparency requirements are low. |
| Total thickness | 105-140 micron total at the body; window patch film 60-90 micron (Draft / To Confirm) - family reference for KP-ECO-002: 140-180 microns total including the paper web (Draft / To Confirm) - Draft / To Confirm |
| Closure | Press-to-close zipper with an easy-tear notch and a recycled kraft top fold |
| Print process | Flexographic surface print on the paper web, up to 6 stations, water-based inks (Draft / To Confirm) Applied to this SKU's Clear-Window Composite Kraft Pouch format. |
| Finish | Uncoated natural paper surface with a matte, tactile hand feel; optional spot varnish accent; no foil stamping, no metallised layer Original catalogue surface direction to confirm: Matte kraft-look exterior with a gloss-varnish ring around the window |
| Window | None. A window would break the fibre-first direction - Not offered in the default build (To Confirm as a special request only) Format note for KP-PF-012: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Handle | None by default on 1 lb and 3 lb; a reinforced die-cut paper handle is available on the 6 lb size - To Confirm Format note for KP-PF-012: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Degassing valve | None. No spout and no valve; the paper-first build is for dry food only Format note for KP-PF-012: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Origin | Dongguan, Guangdong, China |
Sizes & fill weight
| Available sizes | 3 oz / 6 oz / 10 oz (85 g / 170 g / 283 g) - Draft / To Confirm against fill weight and bulk density |
| Dimensions (W x H + gusset) | 3 oz / 6 oz / 10 oz (85 g / 170 g / 283 g). Draft finished size W x H + bottom gusset (mm): 3 oz approx. 130 x 200 + 50; 6 oz approx. 160 x 240 + 60; 10 oz approx. 180 x 270 + 70. Draft window opening approx. 70 x 90 mm, or a die-cut full-front option. Draft / To Confirm against fill line and seal width. |
| Monthly capacity | 500,000-1,200,000 pcs / month |
Bags are built to your fill weight and bulk density, not to a catalogue number — send us the product and we confirm the structure before tooling.
MOQ & unit pricing
500 pcs (digital print) / 20,000 pcs (gravure)
| 500 pcs | USD 0.376 / pc |
| 1,000 pcs | USD 0.338 / pc |
| 5,000 pcs | USD 0.188 / pc |
| 20,000 pcs | USD 0.141 / pc |
Prices are FOB Dongguan and exclude duties and taxes.
Lead time & payment
| Production lead time | 28-40 days |
| Sample lead time | 12-18 days |
| Payment terms | T/T - 40% deposit, balance before shipment |
Documentation supplied
| Food-contact documentation | Food-contact compliance letter for the paper stock, barrier coating and sealant liner - TO REQUEST | Declaration of Compliance covering the paper, the coating and the printing ink - TO PREPARE | Migration test report for the coated paper under dry and fatty food-contact conditions - TO REQUEST | Purity / mineral-oil (MOSH-MOAH) screening for the recycled or kraft fibre input - TO REQUEST | Converting plant GMP certificate (BRCGS, SQF or equivalent) - TO REQUEST | Repulpability and fibre-recovery test report from a mill or independent lab - TO PREPARE | Seal integrity and drop test report at the 1-6 lb fill weights - TO PREPARE | Grease and moisture barrier performance report for dry kibble storage - TO PREPARE | Food-contact declaration for this SKU's closure and fitment components (Press-to-close zipper with an easy-tear notch and a recycled kraft top fold) - TO REQUEST from the component supplier |
| Environmental claim status | CLAIM PENDING - NOT VERIFIED. No repulpability, paper-recycling, recyclability, compostability or bio-based content claim is validated for this SKU. The fibre share, the liner material and the actual repulpability of the finished pack under a mill test are all unverified. Any fibre-first wording must wait for a mill or laboratory repulpability result and a resin declaration; until then describe the pack only as 'paper-first construction direction - recovery behaviour under verification'. SKU note for KP-PF-012: the claim-critical components are the closure and fitment actually used on this build (Press-to-close zipper with an easy-tear notch and a recycled kraft top fold) and the end-of-life route of the pack format of this SKU; both must be covered by the assessments listed before any wording changes. |
About this structure
ClearSight pairs a kraft-look exterior with a die-cut window that shows the actual product. For a treat brand, visible pieces do the selling: shape, size and roast color are all legible before opening. The window film is high-clarity so photo-printed and real product colors match, and a gloss-varnish ring frames it like an illustration plate. Hand-drawn sketch graphics keep the pack feeling small-batch and human rather than mass-produced. In the rebuilt 36-SKU green matrix this product is re-homed to parameter family KP-ECO-002 - Paper-First Repulpable Flat-Bottom Pouch - on the basis of structure-first match: paper-look outer web over a functional barrier, carried into the paper-first family; the die-cut window is a format variant. The family design direction is: Maximise the fibre share and keep the liner as thin as the barrier requirement allows; use a water-based or dispersion barrier coating instead of a full plastic layer where possible; avoid foil, metallised film and plastic windows; keep the closure either paper-compatible or a single small PE part so fibre recovery is not blocked. The front panel stays blank and carries no brand of ours, so the buyer's own label can be applied. Nothing here is a verified environmental statement: CLAIM PENDING - NOT VERIFIED. No repulpability, paper-recycling, recyclability, compostability or bio-based content claim is validated for this SKU. The fibre share, the liner material and the actual repulpability of the finished pack under a mill test are all unverified. Any fibre-first wording must wait for a mill or laboratory repulpability result and a resin declaration; until then describe the pack only as 'paper-first construction direction - recovery behaviour under verification'. Duties & taxes are not included in quoted prices.
Why brands choose it
- Fibre First - heavy paper web and natural folds under clean light - applied to the Clear-Window Composite Kraft Pouch format
- Paper-First Repulpable Flat-Bottom Pouch
Frequently asked
Is your company a manufacturer or a trading company?
We are a direct manufacturer with our own factory in Dongguan, Guangdong, China, founded in 2014. You are welcome to arrange a virtual or on-site factory tour.
Can your packaging be customized?
Yes. We provide full OEM/ODM services including custom printing, size, material structure, pouch type, zipper / spout / handle options, and artwork support.
What types of packaging bags can you produce?
We produce stand-up pouches, flat bottom bags, spout pouches, retort pouches, side gusset bags, quad seal bags, kraft paper bags, mono-material recyclable bags, window bags, and bulk bags.
How do I request a quotation?
Please share your bag type, target size, estimated order quantity, material preference, and design artwork (AI or PDF). Our sales team will reply with a detailed quotation and sampling plan.
How can I contact you?
Use the inquiry form on this page, email us, or reach us via WhatsApp / WeChat. A dedicated project manager will follow up within one business day.
Need this quoted?
Send your fill weight, first-run quantity and target market to kindpackpouch@gmail.com or WhatsApp +86 150 1487 8185. You will get a transparent quote, the MOQ for your structure, and a sample lead time within one business day. Duties and taxes are not included in quoted prices.
