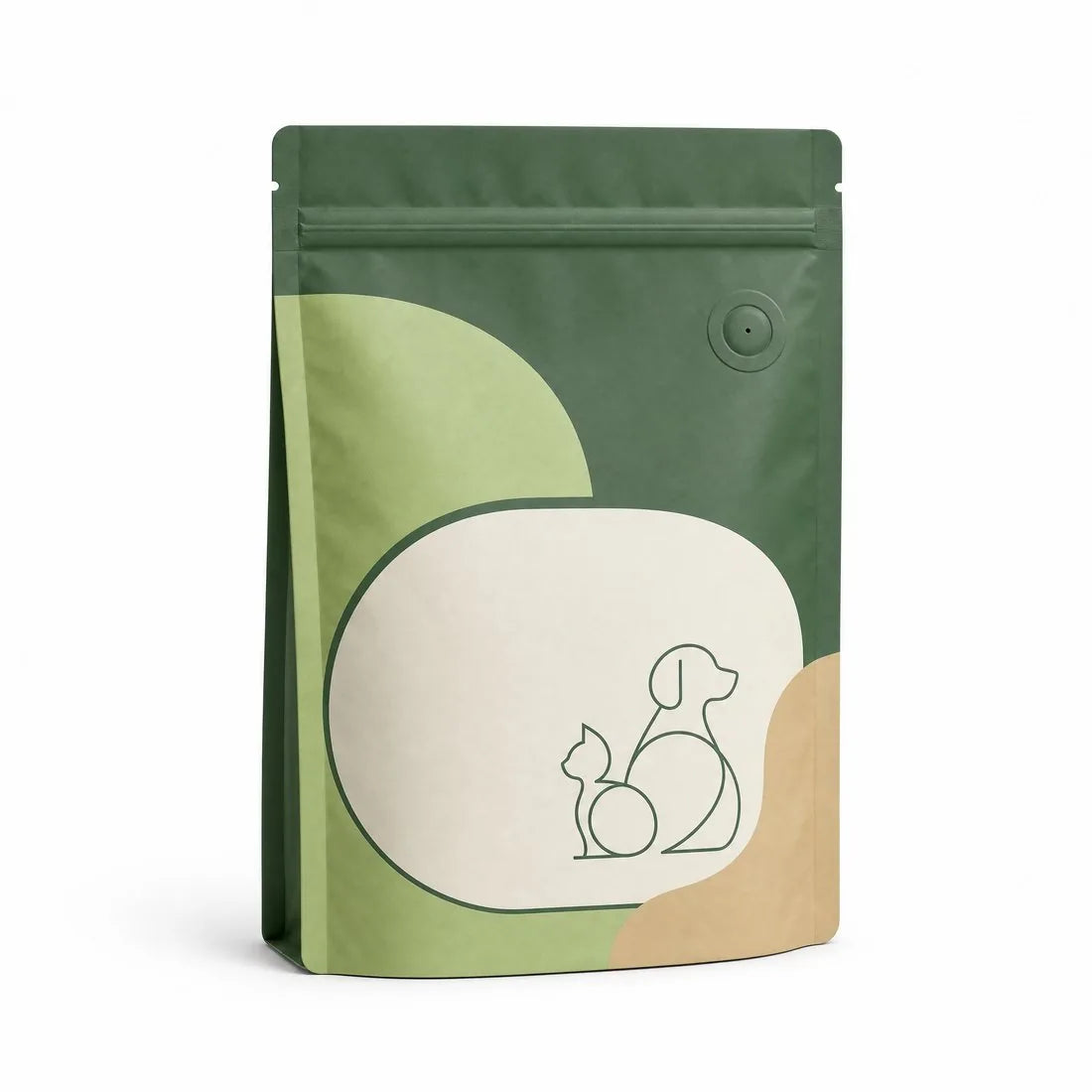

KindPack FreezeLock Vacuum Pouch
KindPack FreezeLock Vacuum Pouch
Vacuum-capable pouch that compresses for dense shelf efficiency while protecting brittle dried product. Rebuilt into the KP-ECO-004 Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food green parameter family: bio-based mono-PE with a valve and high-barrier direction. Blank front panel, no brand on the pack. All specifications are Draft / Indicative / To Confirm - not a quote.
Specification
| Bag type | Green & Recyclable |
| Structure | Vacuum-capable pouch with a reinforced sealant layer and a high-barrier web that holds compression without wrinkling the print Re-homed to the KP-ECO-004 Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food build direction: Stand-up pouch with a welded or rivet-fitted one-way degassing valve, reinforced valve patch inside the film, bottom gusset and a double-seal top (Draft / To Confirm). |
| Material | DRAFT / TO CONFIRM - KP-ECO-004 family material direction: DRAFT / TO CONFIRM - bio-based mono-PE direction. Sample candidates: (a) bio-based PE (sugarcane-derived) MDO web 25 micron / water-based ink / bio-based PE sealant 90-100 micron; (b) bio-based PE blend with an EVOH-free high-barrier coating for the raw food application. Bio-based carbon share, barrier performance and the valve's material family are unverified and must be tested; the whole-pack material balance depends on the valve selection. SKU-specific options carried over from the original catalogue and still to be confirmed: Direction to select at sampling: high-barrier vacuum-grade laminate with a thick sealant layer for compression resistance. Foil or foil-free barrier options are both viable development tracks. |
| Total thickness | 95-125 micron total, sealant layer 50-80 micron (Draft / To Confirm by compression trial) - family reference for KP-ECO-004: 115-135 microns total, excluding the valve body (Draft / To Confirm) - Draft / To Confirm |
| Closure | Heat-sealed vacuum closure with a user tear notch; optional zipper for repeat opening |
| Print process | Flexographic surface print, up to 8 stations, water-based inks, with a masked area reserved for the valve weld (Draft / To Confirm) Applied to this SKU's Vacuum High-Barrier Pouch format. |
| Finish | Matte finish with a soft-touch hand feel; no foil and no metallic ink so the mono-material direction is preserved Original catalogue surface direction to confirm: Satin matte surface that resists fold whitening under vacuum compression |
| Window | None in the default build. A mono-material PE window is theoretically possible but the valve placement and the barrier requirement make it a To Confirm special request only Format note for KP-PF-017: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Handle | None. Not offered on this retail-size format Format note for KP-PF-017: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Degassing valve | One-way degassing valve, welded or rivet-fitted, with a reinforcing patch; valve body material and recyclability compatibility To Confirm. No drinking or pouring spout is offered Format note for KP-PF-017: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Origin | Dongguan, Guangdong, China |
Sizes & fill weight
| Available sizes | 2 oz / 6 oz / 12 oz / 1 lb (57 g / 170 g / 340 g / 454 g) - Draft / To Confirm against fill weight and bulk density |
| Dimensions (W x H + gusset) | 2 oz / 6 oz / 12 oz / 1 lb (57 g / 170 g / 340 g / 454 g). Draft finished size W x H (mm), vacuum-flattened footprint noted: 2 oz approx. 100 x 160; 6 oz approx. 130 x 200; 12 oz approx. 160 x 250; 1 lb approx. 180 x 270. Draft / To Confirm against the compression trial and shelf facing. |
| Monthly capacity | 800,000-2,000,000 pcs / month |
Bags are built to your fill weight and bulk density, not to a catalogue number — send us the product and we confirm the structure before tooling.
MOQ & unit pricing
500 pcs (digital print) / 20,000 pcs (gravure)
| 500 pcs | USD 0.228 / pc |
| 1,000 pcs | USD 0.205 / pc |
| 5,000 pcs | USD 0.114 / pc |
| 20,000 pcs | USD 0.085 / pc |
Prices are FOB Dongguan and exclude duties and taxes.
Lead time & payment
| Production lead time | 28-40 days |
| Sample lead time | 12-18 days |
| Payment terms | T/T - 40% deposit, balance before shipment |
Documentation supplied
| Food-contact documentation | Food-contact compliance letter for the bio-based PE film and sealant - TO REQUEST | Bio-based carbon content verification (for example a C14-based test report) - TO REQUEST | Declaration of Compliance covering film, valve and printing ink - TO PREPARE | Migration test report with attention to the valve weld area - TO REQUEST | Valve supplier food-contact statement and air-tightness / reverse-flow test report - TO REQUEST | Shelf-life and oxygen / moisture ingress study for the raw food application - TO PREPARE | Converting plant GMP certificate (BRCGS, SQF or equivalent) - TO REQUEST | Valve weld strength and drop test report at fill weight - TO PREPARE | Food-contact declaration for this SKU's closure and fitment components (Heat-sealed vacuum closure with a user tear notch; optional zipper for repeat opening) - TO REQUEST from the component supplier |
| Environmental claim status | CLAIM PENDING - NOT VERIFIED. No bio-based content, recyclability, mass-balance, compostability or carbon claim is validated for this SKU. Bio-based share of the total pack, the bio-carbon content of the film, the effect of the valve body on any recovery route, and any mass-balance model are all unverified. Until declarations and an independent assessment are on file, the only permitted wording is 'bio-based PE direction - content and claim status under verification'. SKU note for KP-PF-017: the claim-critical components are the closure and fitment actually used on this build (Heat-sealed vacuum closure with a user tear notch; optional zipper for repeat opening) and the end-of-life route of the pack format of this SKU; both must be covered by the assessments listed before any wording changes. |
About this structure
FreezeLock is engineered to be vacuumed flat. A thick sealant layer and a barrier web hold compression without pinholes, and the satin surface is chosen to resist the white fold lines that usually appear where vacuum creases a print. The result is a dense, orderly pack that uses less shelf depth and protects brittle pieces from crushing in transit. Paper-cut layer graphics create a handmade, layered look that suits small-batch dried treat makers scaling into regional retail. In the rebuilt 36-SKU green matrix this product is re-homed to parameter family KP-ECO-004 - Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food - on the basis of structure-first match: high-barrier, low-oxygen pouch for raw and freeze-dried fills. The family design direction is: Use a plant-based PE direction for the film and sealant so the structure stays in one polymer family; keep the valve as the only non-film component and specify it in a compatible material; water-based inks; solvent-free lamination; and avoid foil and metallised coatings that would rule the pack out of a film recovery route. The front panel stays blank and carries no brand of ours, so the buyer's own label can be applied. Nothing here is a verified environmental statement: CLAIM PENDING - NOT VERIFIED. No bio-based content, recyclability, mass-balance, compostability or carbon claim is validated for this SKU. Bio-based share of the total pack, the bio-carbon content of the film, the effect of the valve body on any recovery route, and any mass-balance model are all unverified. Until declarations and an independent assessment are on file, the only permitted wording is 'bio-based PE direction - content and claim status under verification'. Duties & taxes are not included in quoted prices.
Why brands choose it
- Slow Release - valve technology on a plant-based film, quiet studio light - applied to the Vacuum High-Barrier Pouch format
- Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food
Frequently asked
Is your company a manufacturer or a trading company?
We are a direct manufacturer with our own factory in Dongguan, Guangdong, China, founded in 2014. You are welcome to arrange a virtual or on-site factory tour.
Can your packaging be customized?
Yes. We provide full OEM/ODM services including custom printing, size, material structure, pouch type, zipper / spout / handle options, and artwork support.
What types of packaging bags can you produce?
We produce stand-up pouches, flat bottom bags, spout pouches, retort pouches, side gusset bags, quad seal bags, kraft paper bags, mono-material recyclable bags, window bags, and bulk bags.
How do I request a quotation?
Please share your bag type, target size, estimated order quantity, material preference, and design artwork (AI or PDF). Our sales team will reply with a detailed quotation and sampling plan.
How can I contact you?
Use the inquiry form on this page, email us, or reach us via WhatsApp / WeChat. A dedicated project manager will follow up within one business day.
Need this quoted?
Send your fill weight, first-run quantity and target market to kindpackpouch@gmail.com or WhatsApp +86 150 1487 8185. You will get a transparent quote, the MOQ for your structure, and a sample lead time within one business day. Duties and taxes are not included in quoted prices.
