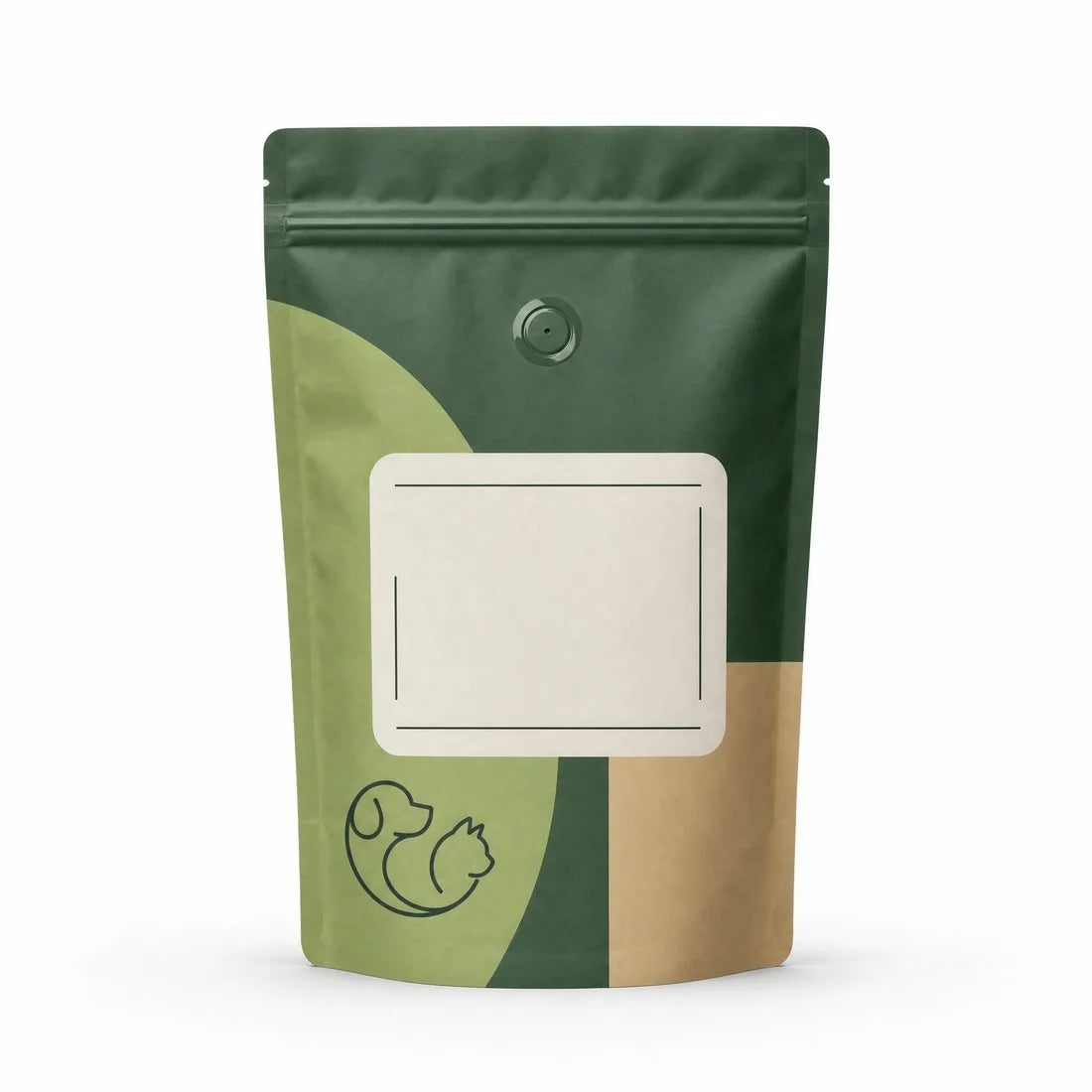

KindPack FreshVent Valve Pouch
KindPack FreshVent Valve Pouch
Stand-up pouch with a one-way valve that lets product gas escape while keeping oxygen out. Rebuilt into the KP-ECO-004 Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food green parameter family: bio-based mono-PE with a valve and high-barrier direction. Blank front panel, no brand on the pack. All specifications are Draft / Indicative / To Confirm - not a quote.
Specification
| Bag type | Green & Recyclable |
| Structure | Stand-up pouch with a welded degassing valve and a bottom gusset; valve placement is defined to avoid obstruction during scooping Re-homed to the KP-ECO-004 Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food build direction: Stand-up pouch with a welded or rivet-fitted one-way degassing valve, reinforced valve patch inside the film, bottom gusset and a double-seal top (Draft / To Confirm). |
| Material | DRAFT / TO CONFIRM - KP-ECO-004 family material direction: DRAFT / TO CONFIRM - bio-based mono-PE direction. Sample candidates: (a) bio-based PE (sugarcane-derived) MDO web 25 micron / water-based ink / bio-based PE sealant 90-100 micron; (b) bio-based PE blend with an EVOH-free high-barrier coating for the raw food application. Bio-based carbon share, barrier performance and the valve's material family are unverified and must be tested; the whole-pack material balance depends on the valve selection. SKU-specific options carried over from the original catalogue and still to be confirmed: Direction to select at sampling: high-barrier laminate with a valve selected for the expected gas release rate; valve behavior should be validated against the specific product's outgassing pattern. |
| Total thickness | 115-145 micron total (Draft / To Confirm; valve weld zone locally reinforced) - family reference for KP-ECO-004: 115-135 microns total, excluding the valve body (Draft / To Confirm) - Draft / To Confirm |
| Closure | Press-to-close zipper with a welded one-way valve near the top seal |
| Print process | Flexographic surface print, up to 8 stations, water-based inks, with a masked area reserved for the valve weld (Draft / To Confirm) Applied to this SKU's Stand-Up Pouch with One-Way Degassing Valve format. |
| Finish | Matte finish with a soft-touch hand feel; no foil and no metallic ink so the mono-material direction is preserved Original catalogue surface direction to confirm: Matte surface with a gloss ring detail printed around the valve position |
| Window | None in the default build. A mono-material PE window is theoretically possible but the valve placement and the barrier requirement make it a To Confirm special request only Format note for KP-PF-025: One-way degassing valve is the primary closure and its body must be matched to the family material direction. |
| Handle | None. Not offered on this retail-size format Format note for KP-PF-025: One-way degassing valve is the primary closure and its body must be matched to the family material direction. |
| Degassing valve | One-way degassing valve, welded or rivet-fitted, with a reinforcing patch; valve body material and recyclability compatibility To Confirm. No drinking or pouring spout is offered Format note for KP-PF-025: One-way degassing valve is the primary closure and its body must be matched to the family material direction. |
| Origin | Dongguan, Guangdong, China |
Sizes & fill weight
| Available sizes | 1 lb / 2 lb / 5 lb (454 g / 907 g / 2.3 kg) - Draft / To Confirm against fill weight and bulk density |
| Dimensions (W x H + gusset) | 1 lb / 2 lb / 5 lb (454 g / 907 g / 2.3 kg). Draft finished size W x H + bottom gusset (mm): 1 lb approx. 190 x 290 + 70; 2 lb approx. 230 x 340 + 80; 5 lb approx. 270 x 400 + 95. Draft valve position on the upper front panel, clear of the scooping path. Draft / To Confirm by gas-release trial. |
| Monthly capacity | 500,000-1,200,000 pcs / month |
Bags are built to your fill weight and bulk density, not to a catalogue number — send us the product and we confirm the structure before tooling.
MOQ & unit pricing
500 pcs (digital print) / 20,000 pcs (gravure)
| 500 pcs | USD 0.485 / pc |
| 1,000 pcs | USD 0.436 / pc |
| 5,000 pcs | USD 0.242 / pc |
| 20,000 pcs | USD 0.182 / pc |
Prices are FOB Dongguan and exclude duties and taxes.
Lead time & payment
| Production lead time | 32-48 days |
| Sample lead time | 15-20 days |
| Payment terms | T/T - 40% deposit, balance before shipment |
Documentation supplied
| Food-contact documentation | Food-contact compliance letter for the bio-based PE film and sealant - TO REQUEST | Bio-based carbon content verification (for example a C14-based test report) - TO REQUEST | Declaration of Compliance covering film, valve and printing ink - TO PREPARE | Migration test report with attention to the valve weld area - TO REQUEST | Valve supplier food-contact statement and air-tightness / reverse-flow test report - TO REQUEST | Shelf-life and oxygen / moisture ingress study for the raw food application - TO PREPARE | Converting plant GMP certificate (BRCGS, SQF or equivalent) - TO REQUEST | Valve weld strength and drop test report at fill weight - TO PREPARE | Food-contact declaration for this SKU's closure and fitment components (Press-to-close zipper with a welded one-way valve near the top seal) - TO REQUEST from the component supplier |
| Environmental claim status | CLAIM PENDING - NOT VERIFIED. No bio-based content, recyclability, mass-balance, compostability or carbon claim is validated for this SKU. Bio-based share of the total pack, the bio-carbon content of the film, the effect of the valve body on any recovery route, and any mass-balance model are all unverified. Until declarations and an independent assessment are on file, the only permitted wording is 'bio-based PE direction - content and claim status under verification'. SKU note for KP-PF-025: the claim-critical components are the closure and fitment actually used on this build (Press-to-close zipper with a welded one-way valve near the top seal) and the end-of-life route of the pack format of this SKU; both must be covered by the assessments listed before any wording changes. |
About this structure
FreshVent exists because some products keep working after they are packed. A welded one-way valve releases carbon dioxide produced by fermentation or fresh processing, so the pouch does not swell into a pillow that distorts the print and consumes pallet space. Meanwhile the valve blocks outside oxygen, protecting aroma and fats. A gloss ring printed around the valve turns an engineering detail into a visible freshness cue, and desert canyon graphics suit earthy, craft-processed product lines. In the rebuilt 36-SKU green matrix this product is re-homed to parameter family KP-ECO-004 - Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food - on the basis of exact structural match: stand-up pouch with a one-way degassing valve. The family design direction is: Use a plant-based PE direction for the film and sealant so the structure stays in one polymer family; keep the valve as the only non-film component and specify it in a compatible material; water-based inks; solvent-free lamination; and avoid foil and metallised coatings that would rule the pack out of a film recovery route. The front panel stays blank and carries no brand of ours, so the buyer's own label can be applied. Nothing here is a verified environmental statement: CLAIM PENDING - NOT VERIFIED. No bio-based content, recyclability, mass-balance, compostability or carbon claim is validated for this SKU. Bio-based share of the total pack, the bio-carbon content of the film, the effect of the valve body on any recovery route, and any mass-balance model are all unverified. Until declarations and an independent assessment are on file, the only permitted wording is 'bio-based PE direction - content and claim status under verification'. Duties & taxes are not included in quoted prices.
Why brands choose it
- Slow Release - valve technology on a plant-based film, quiet studio light - applied to the Stand-Up Pouch with One-Way Degassing Valve format
- Bio-Based Mono-PE Valve Pouch for Raw and Freeze-Dried Food
Frequently asked
Is your company a manufacturer or a trading company?
We are a direct manufacturer with our own factory in Dongguan, Guangdong, China, founded in 2014. You are welcome to arrange a virtual or on-site factory tour.
Can your packaging be customized?
Yes. We provide full OEM/ODM services including custom printing, size, material structure, pouch type, zipper / spout / handle options, and artwork support.
What types of packaging bags can you produce?
We produce stand-up pouches, flat bottom bags, spout pouches, retort pouches, side gusset bags, quad seal bags, kraft paper bags, mono-material recyclable bags, window bags, and bulk bags.
How do I request a quotation?
Please share your bag type, target size, estimated order quantity, material preference, and design artwork (AI or PDF). Our sales team will reply with a detailed quotation and sampling plan.
How can I contact you?
Use the inquiry form on this page, email us, or reach us via WhatsApp / WeChat. A dedicated project manager will follow up within one business day.
Need this quoted?
Send your fill weight, first-run quantity and target market to kindpackpouch@gmail.com or WhatsApp +86 150 1487 8185. You will get a transparent quote, the MOQ for your structure, and a sample lead time within one business day. Duties and taxes are not included in quoted prices.
