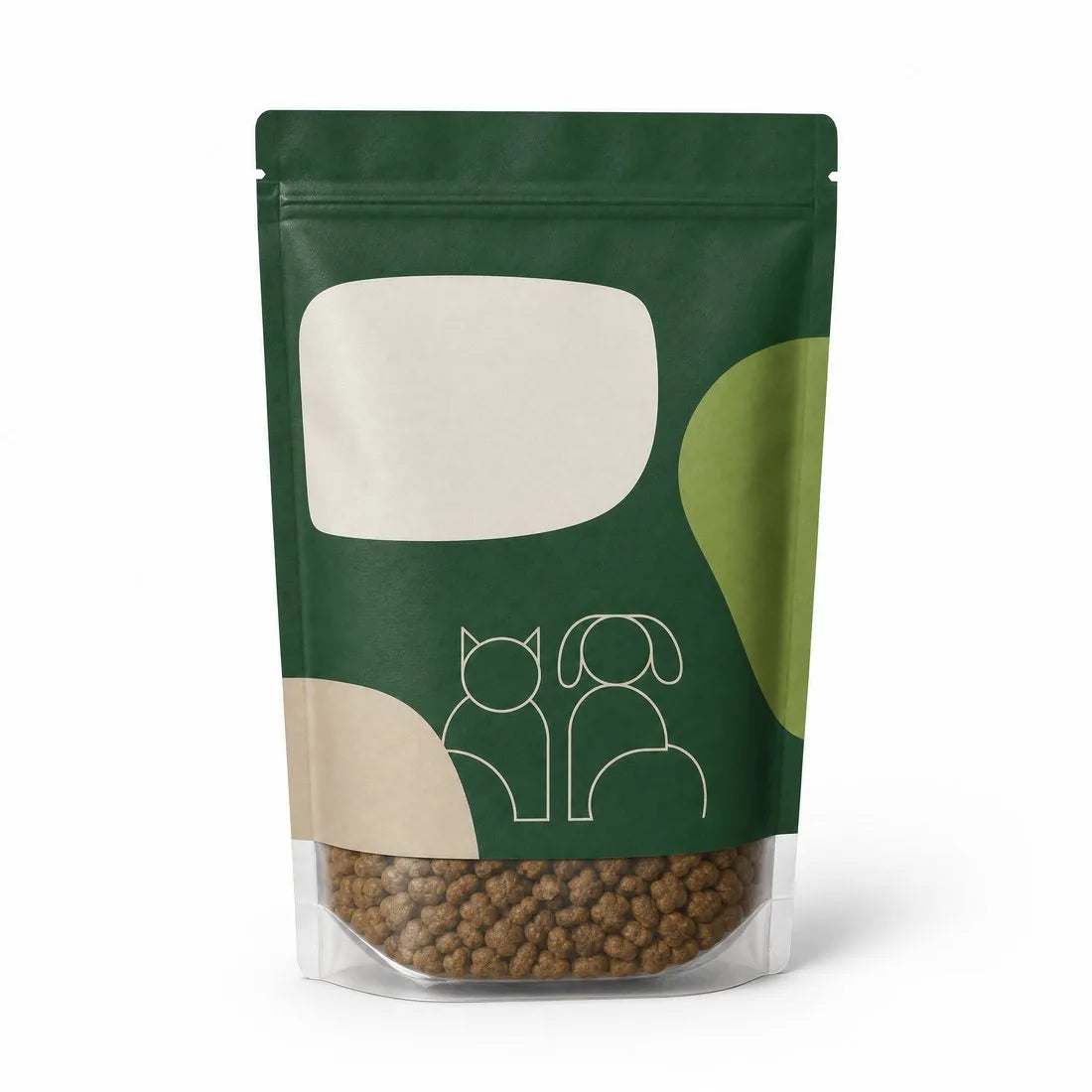

KindPack BaseView Barrier Pouch
KindPack BaseView Barrier Pouch
Barrier pouch with a clear bottom gusset that shows real product at the base while the body stays fully opaque. Rebuilt into the KP-ECO-001 Mono-PE Single-Stream Stand-Up Doypack green parameter family: mono-material PE, single-stream film direction. Blank front panel, no brand on the pack. All specifications are Draft / Indicative / To Confirm - not a quote.
Specification
| Bag type | Green & Recyclable |
| Structure | High-barrier stand-up pouch with a clear high-clarity film forming the bottom gusset, so product is visible in the standing base Re-homed to the KP-ECO-001 Mono-PE Single-Stream Stand-Up Doypack build direction: Single-web mono-PE stand-up pouch with K-seal bottom gusset; the base expands into an oval footprint so the pack stands on shelf and stays open while scooping; the zipper is welded from the same PE family so the whole pack stays in one material stream (Draft / To Confirm). |
| Material | DRAFT / TO CONFIRM - KP-ECO-001 family material direction: DRAFT / TO CONFIRM - mono-material PE construction targeted at a single-stream film direction. Sample candidates: (a) MDO-PE 25 micron / water-based ink / PE sealant 85-95 micron; (b) PE with a 30% post-consumer recycled content direction / PE sealant. Final layer set, PCR percentage and sealant grade to be fixed by fill-weight, drop and shelf-life testing - not a confirmed specification. SKU-specific options carried over from the original catalogue and still to be confirmed: Direction to select at sampling: high-barrier body laminate combined with a clarity-optimized gusset film; barrier performance of the clear section should be reviewed against target shelf life. |
| Total thickness | 115-145 micron total at the body; clear gusset film 70-100 micron (Draft / To Confirm) - family reference for KP-ECO-001: 110-125 microns total (Draft / To Confirm) - Draft / To Confirm |
| Closure | Press-to-close zipper with an easy-tear notch |
| Print process | Flexographic surface print, up to 8 stations, water-based inks with a solvent-free lamination direction (Draft / To Confirm against press capability and ink supplier approval) Applied to this SKU's Barrier Stand-Up Pouch with Clear Bottom Gusset format. |
| Finish | Matte body with a low-gloss sealant band on the back panel; no foil, no metallic ink and no film lamination that would break the single-material direction Original catalogue surface direction to confirm: Matte opaque body with a gloss clear gusset that creates a visible product window at the base |
| Window | None in the default single-material build. A PE window is technically possible but must be re-verified as part of the same material stream before it is offered - To Confirm Format note for KP-PF-029: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Handle | None in the default build. A die-cut top handle is available as an option on the 6 lb and 12 lb sizes and would add a reinforced patch - To Confirm for material-stream compatibility Format note for KP-PF-029: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Degassing valve | None by default; no degassing valve in the standard kibble build. A mono-material degassing valve option for high-fat formulas is To Confirm Format note for KP-PF-029: Window, handle and valve or spout options are not part of this SKU build unless listed; any addition must be re-verified inside the family material direction. |
| Origin | Dongguan, Guangdong, China |
Sizes & fill weight
| Available sizes | 2 lb / 5 lb / 10 lb (907 g / 2.3 kg / 4.5 kg) - Draft / To Confirm against fill weight and bulk density |
| Dimensions (W x H + gusset) | 2 lb / 5 lb / 10 lb (907 g / 2.3 kg / 4.5 kg). Draft finished size W x H + bottom gusset (mm): 2 lb approx. 200 x 310 + 70; 5 lb approx. 250 x 380 + 85; 10 lb approx. 290 x 440 + 100. Draft clear gusset window height approx. 55-75 mm. Draft / To Confirm against the fill level in the standing base. |
| Monthly capacity | 500,000-1,200,000 pcs / month |
Bags are built to your fill weight and bulk density, not to a catalogue number — send us the product and we confirm the structure before tooling.
MOQ & unit pricing
500 pcs (digital print) / 20,000 pcs (gravure)
| 500 pcs | USD 0.465 / pc |
| 1,000 pcs | USD 0.419 / pc |
| 5,000 pcs | USD 0.233 / pc |
| 20,000 pcs | USD 0.174 / pc |
Prices are FOB Dongguan and exclude duties and taxes.
Lead time & payment
| Production lead time | 32-48 days |
| Sample lead time | 15-20 days |
| Payment terms | T/T - 40% deposit, balance before shipment |
Documentation supplied
| Food-contact documentation | FDA 21 CFR indirect food-additive / food-contact substance compliance letter for film, zipper and ink - TO REQUEST from suppliers | Overall and specific migration test report for the finished laminate and the printed surface - TO REQUEST | Declaration of Compliance for food-contact use covering material and printing ink - TO PREPARE | Converting plant GMP certificate (BRCGS, SQF or equivalent) - TO REQUEST | Water-based ink and solvent-free adhesive documentation, including low-migration statements - TO REQUEST | Seal strength, leak and drop test report at the target fill weight - TO PREPARE | Independent recyclability / store drop-off assessment (an assessment, not a certification) - TO PREPARE | Any BPA-free or material-safety wording must wait for a signed supplier declaration - TO CONFIRM | Food-contact declaration for this SKU's closure and fitment components (Press-to-close zipper with an easy-tear notch) - TO REQUEST from the component supplier |
| Environmental claim status | CLAIM PENDING - NOT VERIFIED. No recyclability, recycled-content, mono-material or compostability claim is validated for this SKU today. Before any on-pack, listing or sales wording, the following must be documented and approved: (1) the film resin family declaration and the supplier recyclability statement; (2) a store drop-off eligibility assessment in the US and a provincial programme check in Canada; (3) evidence for any post-consumer recycled content figure (physical content or mass balance); (4) evidence for any material-reduction figure. Until then use only 'recyclable-direction material - verification pending'. SKU note for KP-PF-029: the claim-critical components are the closure and fitment actually used on this build (Press-to-close zipper with an easy-tear notch) and the end-of-life route of the pack format of this SKU; both must be covered by the assessments listed before any wording changes. |
About this structure
BaseView puts transparency where it costs nothing. The front panel stays fully opaque for barrier protection and brand storytelling, while the bottom gusset is produced in a high-clarity film so the actual kibble or mixer blend is visible where the pouch stands on shelf. It is a product-proof cue without sacrificing the light protection that fats need. A warm photographic portrait panel reinforces a personal, single-name brand story for regional and DTC makers. In the rebuilt 36-SKU green matrix this product is re-homed to parameter family KP-ECO-001 - Mono-PE Single-Stream Stand-Up Doypack - on the basis of structure-first match: stand-up pouch with a bottom gusset. The family design direction is: Mono-material PE only, with no mixed polymer layers, so the pack can stay in one film stream; water-based inks; solvent-free lamination; source reduction by downgauging; a PCR content direction; and a zipper from the same PE family so the closure does not contaminate the stream. The front panel stays blank and carries no brand of ours, so the buyer's own label can be applied. Nothing here is a verified environmental statement: CLAIM PENDING - NOT VERIFIED. No recyclability, recycled-content, mono-material or compostability claim is validated for this SKU today. Before any on-pack, listing or sales wording, the following must be documented and approved: (1) the film resin family declaration and the supplier recyclability statement; (2) a store drop-off eligibility assessment in the US and a provincial programme check in Canada; (3) evidence for any post-consumer recycled content figure (physical content or mass balance); (4) evidence for any material-reduction figure. Until then use only 'recyclable-direction material - verification pending'. Duties & taxes are not included in quoted prices.
Why brands choose it
- One Stream - a single-material pack photographed as one continuous surface - applied to the Barrier Stand-Up Pouch with Clear Bottom Gusset format
- Mono-PE Single-Stream Stand-Up Doypack
Frequently asked
Is your company a manufacturer or a trading company?
We are a direct manufacturer with our own factory in Dongguan, Guangdong, China, founded in 2014. You are welcome to arrange a virtual or on-site factory tour.
Can your packaging be customized?
Yes. We provide full OEM/ODM services including custom printing, size, material structure, pouch type, zipper / spout / handle options, and artwork support.
What types of packaging bags can you produce?
We produce stand-up pouches, flat bottom bags, spout pouches, retort pouches, side gusset bags, quad seal bags, kraft paper bags, mono-material recyclable bags, window bags, and bulk bags.
How do I request a quotation?
Please share your bag type, target size, estimated order quantity, material preference, and design artwork (AI or PDF). Our sales team will reply with a detailed quotation and sampling plan.
How can I contact you?
Use the inquiry form on this page, email us, or reach us via WhatsApp / WeChat. A dedicated project manager will follow up within one business day.
Need this quoted?
Send your fill weight, first-run quantity and target market to kindpackpouch@gmail.com or WhatsApp +86 150 1487 8185. You will get a transparent quote, the MOQ for your structure, and a sample lead time within one business day. Duties and taxes are not included in quoted prices.
